Silent Diesel Generator Set
>
5kw Silent Diesel Generator Set Portable Air Cooled Customizable 220V 380V
|
5kw Silent Diesel Generator Set Portable Air Cooled Customizable 220V 380V
| Place of Origin | China |
| Brand Name | JIWEI |
| Certification | ce |
| Model Number | JW-YMT |
Product Details
Rated Voltage:
110V/220V/230V/380V/400V/440V,120 To 440V
Frequency:
50/60HZ
Speed:
3600rpm,3000/3600RPM,1500/1800
Rated Current:
5A-30A
Rated Power:
5kw
Output Type:
AC Single Phase,DC,AC 3 Phase,Other
Color:
Customizable
Engine Type:
Two-Cylinder Four-Stroke，Air-cooled Diesel Engine,ECU
Starting System:
Manual Start, Remote Start, Electric Start
Function:
Provide Electric Power
Fuel Tank Capacity:
10-25L，According To Customers' Requirement
Alternator Type:
Brush Alternator With AVR Or Brushless With AVR,Three Phase Alternator
Product:
5kw Silent Diesel Generator Set Portable Air Cooled Customizable 220V 380V
Highlight:
5kw silent diesel generator
,portable air cooled generator
,customizable 220V 380V generator
Payment & Shipping Terms
Minimum Order Quantity
1
Price
Negotiable
Payment Terms
T/T
Product Description
5kw Silent Diesel Generator Set Portable Air Cooled Customizable 220V 380V
Overview
Silent diesel generators are specifically designed to minimize noise output, making them ideal for environments that require quiet operation.
Key Features
- Low Noise Design: Uses soundproof materials and specially designed silencers to significantly reduce operational noise.
- High Efficiency: Provides stable power output over extended periods with excellent fuel efficiency.
- Durability: Robust diesel engine structure suitable for long-running and heavy-load conditions.
- Portability: Mobile design allows for easy relocation and use in various settings.
- Environmental Protection: Complies with modern environmental standards, reducing emissions.
Applications
- Backup Power Supply: Emergency power source for hospitals, data centers, and critical operations.
- Outdoor Activities: Reliable power for events, weddings, and outdoor gatherings.
- Construction Sites: Powers tools and facilities at sites without grid access.
- Remote Areas: Essential power source for research stations and mining operations.
Specifications
| MODEL | YMT6500 | YMT7500 |
|---|---|---|
| Rated Frequency (HZ) | 50 | 50 |
| Rated Voltage (V) | 230 | 230 |
| Rated Power (KW) | 5KW | 6KW |
| Number of Phases | Single Phase | Single Phase |
| Size (mm) | 970*560*780 | 970*560*780 |
| Net Weight (kg) | 148 | 149 |
| Fuel Tank Capacity (L) | 12.5 | 12.5 |
| Noise (decibels @7m) | 70 | 70 |
| Engine Model | 186FAGE | 188FGE |
| Type | In-line, single cylinder, air-cooled, four-stroke | |
| Cylinder Diameter (mm) | 86 | 88 |
| Piston Stroke (mm) | 72 | 75 |
| Displacement (ml) | 418 | 456 |
| Fuel Consumption Rate g/kw*h | ≤275 | ≤270 |
| Rated Speed (r/min) | 3000 | 3000 |
| Starting System | 12V starter motor | |
| Insulation Class | H | |
| Continuous Working Time (h) | 8 | |
| Fuel Grade | Diesel: 0# (summer), -10# (winter) | |
| Oil Grade | SAE 10W30 (or CD grade or above) | |
| Optional Configuration | ATS/remote control/various body designs | |

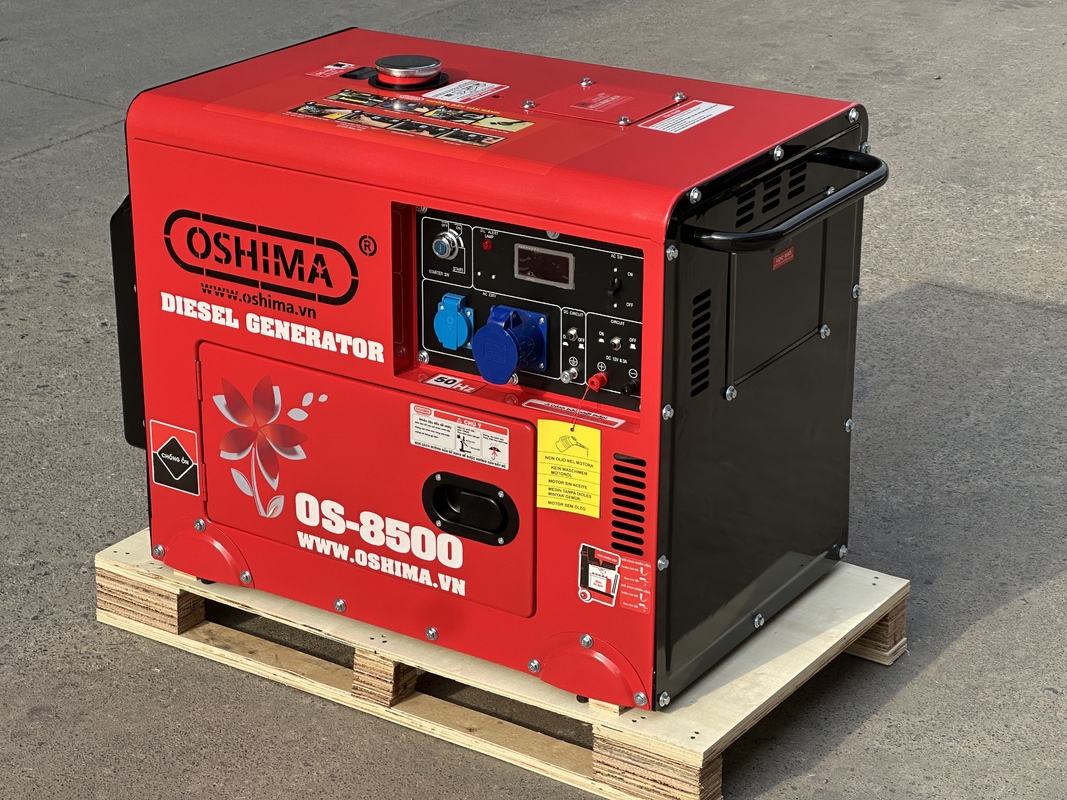

Product Images
Frequently Asked Questions
Q: What is your MOQ of this item?
A: 1 Set.
Q: What is the lead time?
A: 7 working days after receiving the 30% T/T deposit.
Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacturer with your authorization of brand.
Q: Where is your Loading Port?
A: Shanghai or others.
Q: What are your payment terms?
A: 30% TT as deposit, 70% TT before shipment.
Q: What is your company's available production capacity?
A: 100 Sets per month.
Q: What's the warranty time of diesel generators?
A: 12 months or 1000 working hours, whichever comes first.
