Trailer Vehicle Mounted Light Tower Hydraulic Telescopic 9M Emergency Vehicle Light Towers
|
Trailer Vehicle Mounted Light Tower Hydraulic Telescopic 9M Emergency Vehicle Light Towers
| Place of Origin | China |
| Brand Name | BM |
| Model Number | BMN4000D |
Product Details
Warranty:
Other
Product Name:
Trailer Type Mobile Lighting Car Hydraulic Telescopic Support 9 Meters Hydraulic Automatic Lifting
Usage:
Generator,Diesel Generator Set
Stock:
YES,Stock Supply，In Stock
Color:
Black,white,Black Or Request
Package:
Wooden Box
Current Type:
AC
Oem Service:
Yes
Material:
Plastic,Iron
Origin:
CHINA
Highlight:
Trailer Vehicle Mounted Light Tower
,Vehicle Mounted Light Tower Hydraulic
,9M Emergency Vehicle Light Towers
Payment & Shipping Terms
Minimum Order Quantity
1pieces
Price
Negotiable
Delivery Time
10 work days
Payment Terms
T/T
Product Description

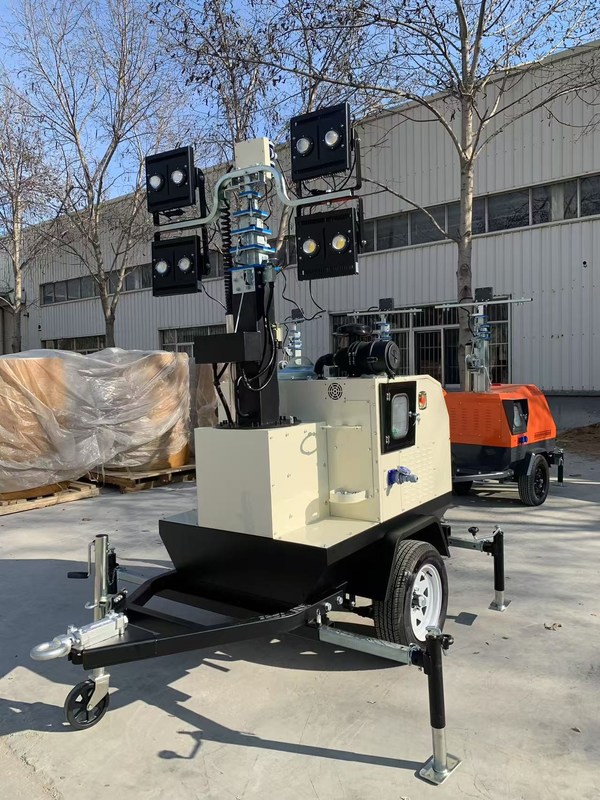

Trailer Type Vehicle Mounted Light Tower Hydraulic Telescopic Support 9 Meters Hydraulic Automatic Lifting
Product Features Overview
Diesel power hand-propelled lighting lighthouse is a mobile lighting equipment powered by diesel generator sets. Below are its key components and features:
Structural Components
- Lighting system: Equipped with multiple high-brightness LED lamp heads or metal halide lamps, providing high-intensity, large-area illumination.
- Lifting system: Features hand, electric, or hydraulic operation with lifting height of 3-9 meters.
- Diesel generator set: Composed of diesel engine and generator with tank capacity of 15L-100L, enabling continuous operation for dozens of hours.
- Walking mechanism: Equipped with solid tires or universal wheels for easy movement, some models include rail wheels for track operation.
- Control system: Controls lifting, lamp switching, and angle adjustment, with some models featuring remote control capability.
Performance Characteristics
- Easy mobility: Compact size with wheel design for easy movement across various terrains.
- Excellent illumination: Provides high brightness with coverage radius of 30-50 meters, adjustable lamp angles.
- Environmental adaptability: Constructed with high-quality metal materials, IP65+ protection rating for harsh conditions.
- Stable power supply: Diesel generator power between 2KW-15KW for independent, continuous operation.
Application Scenarios
- Construction sites for night work illumination
- Road construction and maintenance projects
- Emergency rescue operations
- Outdoor events and activities
Technical Specifications
| Engine Model | YANMAR | CHANGCA | KUBOTA |
|---|---|---|---|
| Engine Model | 3TNV76-GGE | CZ3800 3M78 | D1105 |
| Engine Type | Three cylinder, water-cooled, four stroke | ||
| Power (kw) | 11.1 | 14.3 | 12.6 |
| Frequency (rpm) | 1500/1800 | ||
| Burning method | E-TVS | ||
| Intake method | Naturally aspirated | ||
| Emission class | Conventional | ||
| Generator standard configuration | SPARKS | ||
| Rated voltage (50/60hz) | 230/240-120V | ||
| Motor insulation class | CLASS H | ||
| Motor protection class | IP23 | ||
| Headlights | Metal Halide Flood Lights/LED | ||
| Luminous flux (n) | 440000 | ||
| Number & power of lamps (W) | 1000x4/400X4 | ||
| Number of pole sections | 8 | ||
| Fuel tank capacity (L) | 90 | ||
| Continuous working time (h) | 65 | ||
| Unit start method | Key start | ||
| Maximum wind speed (m/s) | 20 | ||
| Noise level (dB) | 72 at 7 meters | ||
| Suspension & Brakes | Leaf spring suspension & single axle without brake | ||
| Drawbar | Adjustable lever with retractable adjustable guide | ||
| Maximum lift height (m) | 9 | ||
| Tire size | 14 | ||
| Maximum traction speed (km/h) | 80 | ||
| Length (mm) | 3600 | ||
| Width (mm) | 1670 | ||
| Height (mm) | 2480 | ||
| Weight (kg) | 1360 | ||
Frequently Asked Questions
Q: What is your MOQ of this item?
A: 1 Sets.
Q: What is the lead time?
A: 7 working days after receiving the 30% T/T deposit.
Q: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q: Where is your Loading Port?
A: Shanghai or others.
Q: What are your payment terms?
A: 30% TT as deposit, 70% TT before Shipment.
Q: What is your company's available production capacity?
A: 10000 Sets per month.
Q: What's the warranty time of diesel generators?
A: 12 months or 1000 working hours, whichever comes first.
